Importing XRExtras into Cloud Editor

This section of the documentation is intended for advanced users who are using the 8th Wall Cloud Editor and need to create a completely customized version of XRExtras. This process involves:

  • Cloning the XRExtras code from GitHub
  • Importing files into your Cloud Editor project
  • Disabling type-checking in A-Frame component files
  • Updating your code to use your local, custom copy of XRExtras instead of pulling our default from CDN (via meta tag)

If you only need to make basic customizations of the XRExtras loading screen, please refer to this section instead.

Note: By importing a copy of XRExtras into your Cloud Editor project, you will no longer receive the latest XRExtras updates and functionality available in from CDN. Make sure to always pull the latest version of XRExtras code from GitHub as you start new projects.

Instructions:

  1. Create a myxrextras folder within your Cloud Editor project

  2. Clone https://github.com/8thwall/web

  3. Add contents of the xrextras/src/ directory (https://github.com/8thwall/web/tree/master/xrextras/src) to your project, with the exception of index.js

  4. Your project contents will look something like this:

xrextras files

  1. For each file in the aframe/components folder, remove the import statement and replace it with // @ts-nocheck

xrextras disable type-checking

  1. In head.html, remove or comment out the <meta> tag for @8thwall.xrextras so it’s no longer pulled in from our CDN:

xrextras head

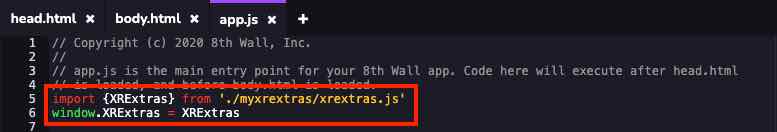

  1. In app.js, import your local xrextras library:

xrextras appjs

Changing/Adding image assets​

First, drag & drop new images into assets/ to upload them to your project:

xrextras asset

In ​html files​ with src params, refer to the image asset using a relative path:

<img src="​../../assets/​my-logo.png" id="loadImage" class="spin" />

In javascript files​, use a relative path and ​require()​ to reference assets:

img.src = ​require​('​../../assets/​my-logo.png')
