Materials

Introduction

This section explains how to use materials in Studio.

Material Types

Material or Standard Material

A standard PBR material.

View properties here.

Unlit Material

Material unaffected by lighting or shadows. Color remains consistent, no Physical Based Rendering (PBR) support.

View properties here.

Material Properties

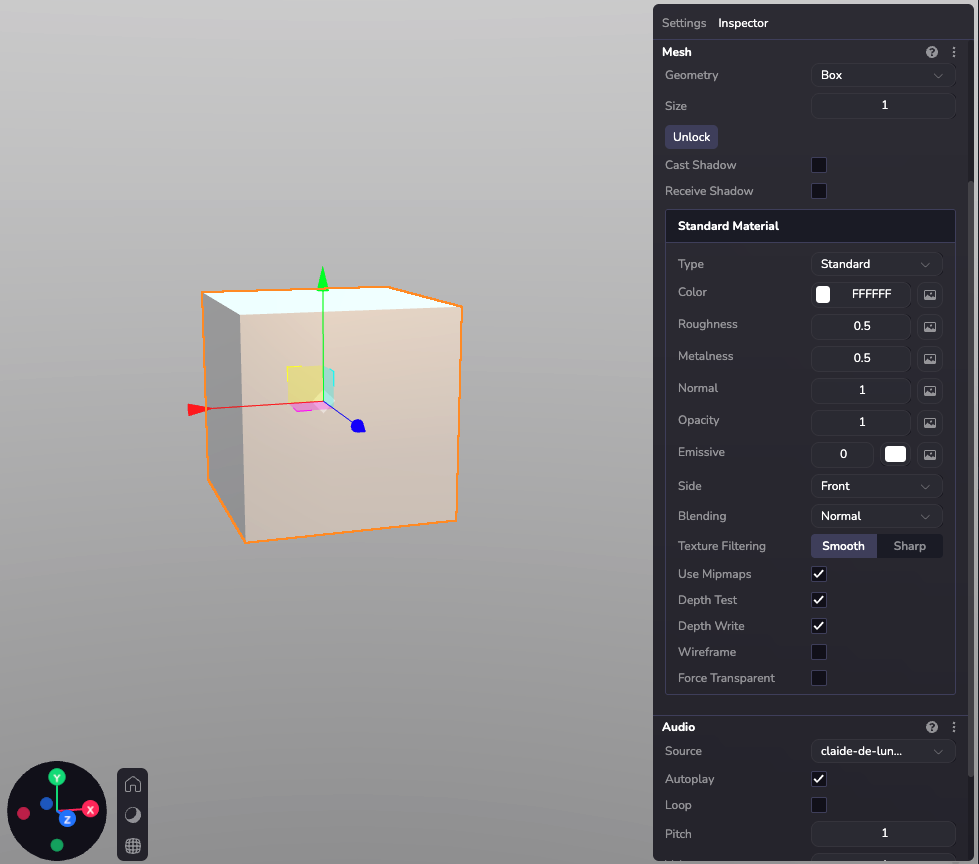

Materials can be configured either through code or directly within the Mesh component in the editor.

Configuring materials through code

ecs.Material.set(world, component.eid, {
  r: 255,
  g: 128,
  b: 64,
  roughness: 0.5,
  metalness: 0.8,
  opacity: 1.0,
  side: "front"
})

ecs.UnlitMaterial.set(world, component.eid, {
  r: 255,
  g: 0,
  b: 128,
  opacity: 1.0,
  side: "double"
})

Load a texture

Loading a texture requires an asset or an independent url that serves an image. You can visit the API section on Material and Unlit Material to find out more about the different types of texture maps supported.

import * as ecs from '@8thwall/ecs'

ecs.registerComponent({
    name: 'apply-texture-to-material',
    schema: {
        // @asset
        myTexture: ecs.string,
    },
    add: (world, component) => {
        const { myTexture } = component.schemaAttribute.get(component.eid)
        ecs.assets.load({ url: myTexture })
            .then((result) => {
                ecs.Material.set(world, component.eid, {
                    r: 255,
                    g: 128,
                    b: 64,
                    textureSrc: `${result.remoteUrl}`,
                    roughness: 0.5,
                    metalness: 0.8,
                    opacity: 1.0,
                    side: "back"
                })
            })
            .catch((error) => {
                console.error('Failed to load texture:', error)
            })
    }
})

Special Materials

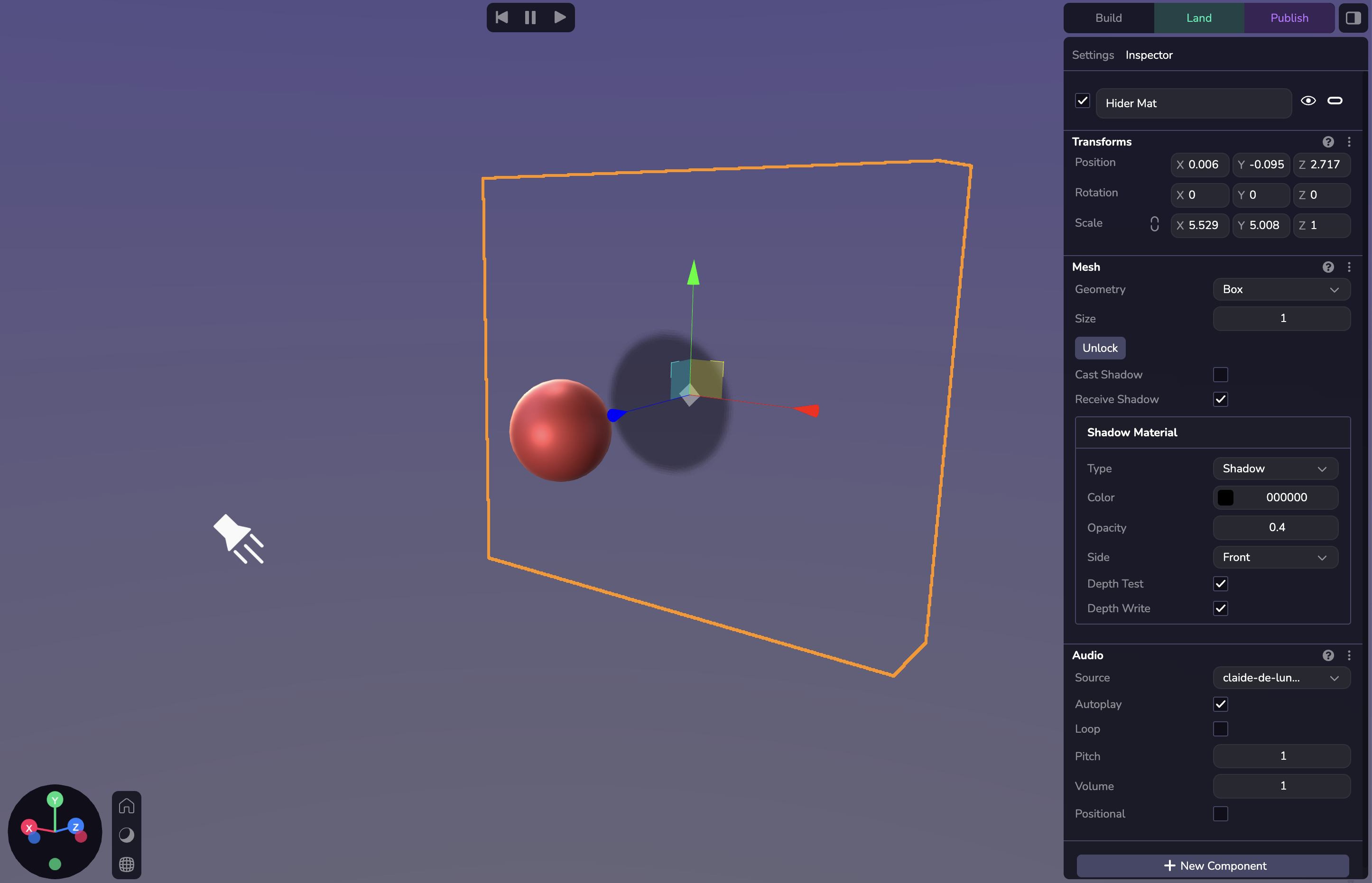

Shadow Material

Material that only renders when a shadow is casted onto it.

Note: For this to work, you need three settings turned on:

1. Enable "cast shadows" on the lights
2. Enable "receive shadows" on the shadow material object
3. The object casting the shadow (red ball in the image below) needs to cast shadows as well.

ecs.ShadowMaterial.set(world, component.eid, {r: 0, g: 250, b: 0, opacity: 1, side: 'front', depthTest: true, depthWrite: true})

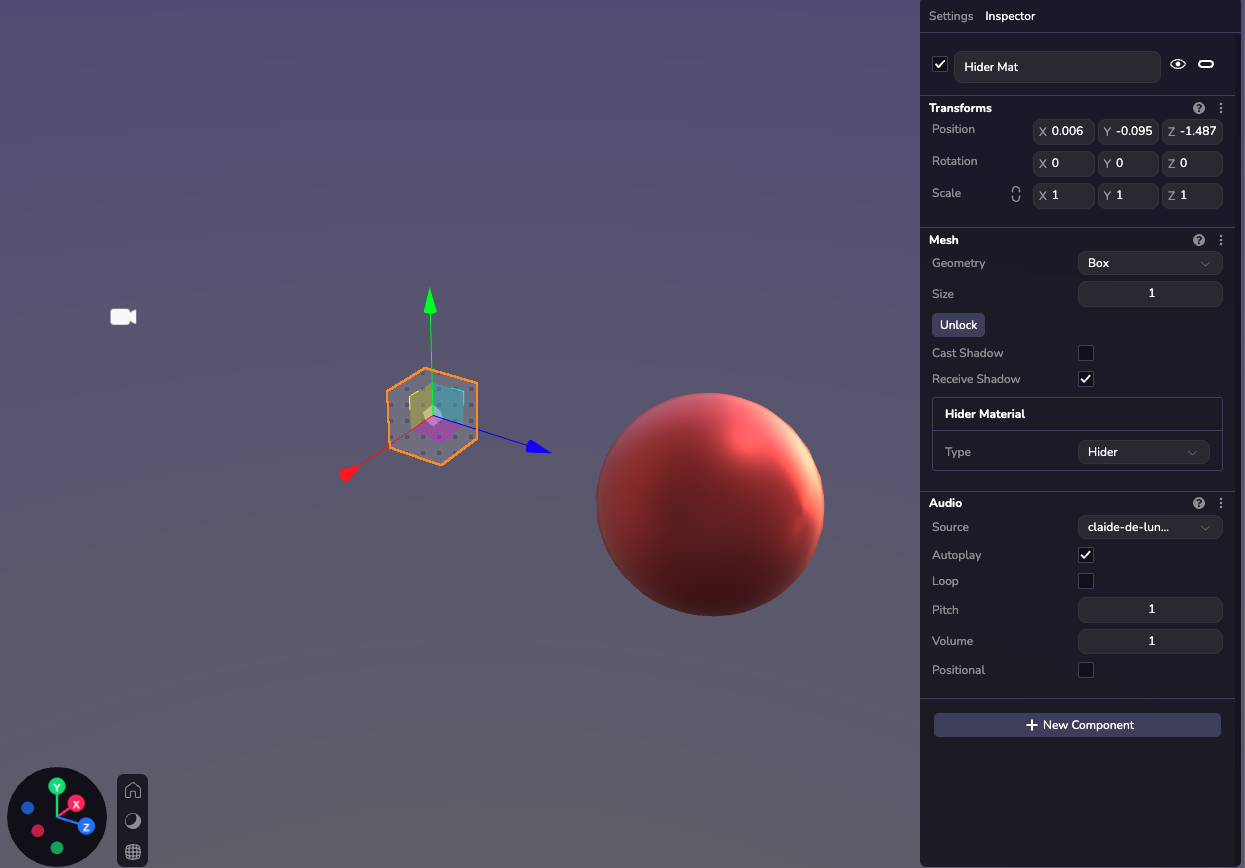

Hider Material

Material that hides any objects behind it.

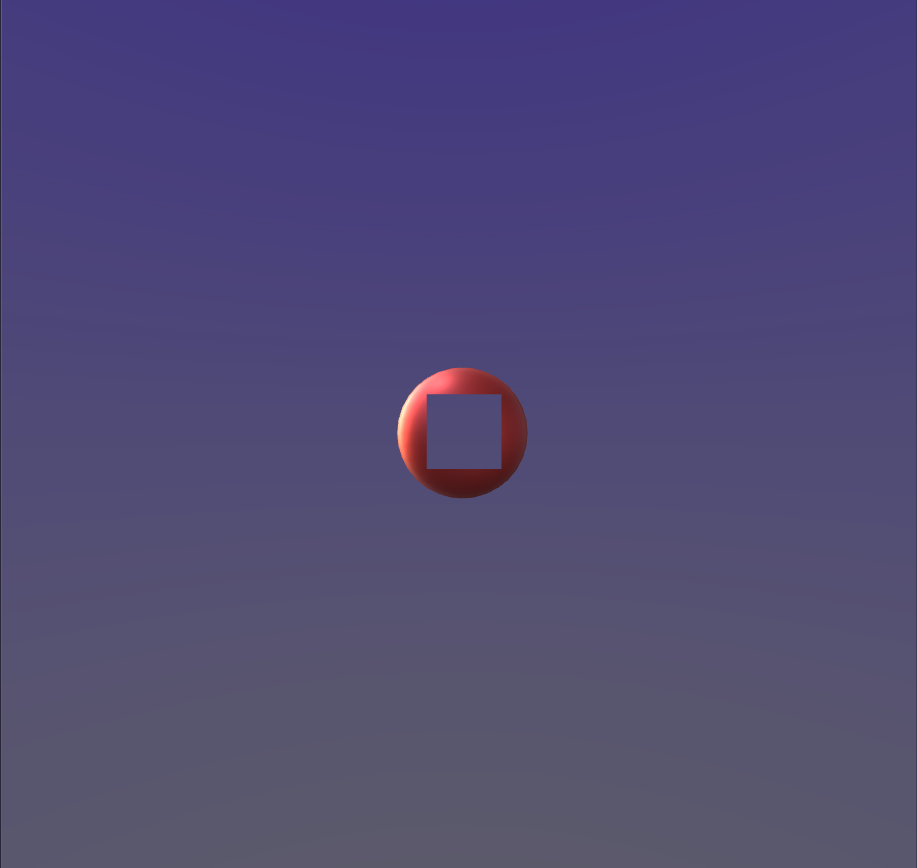

Camera perspective at runtime:

ecs.HiderMaterial.set(world, component.eid)
